Coating/​Laminating/​Bonding

Santex to present new scatterer for coating of technical textiles at Techtextil

Tailored solutions can be realised, when the Caviscat is combined with other machines of the Cavitec brand.

10th March 2015

Innovation in Textiles
 |  Tobel

Industrial

Santex AG, Tobel Switzerland, will present the Caviscat scatterer at the Techtextil show for technical textiles and nonwovens that takes place from 4-7 May in Frankfurt.

The company’s new product can be combined with other machines of the Cavitec brand to form complete coating and laminating solutions, the manufacturer reports.

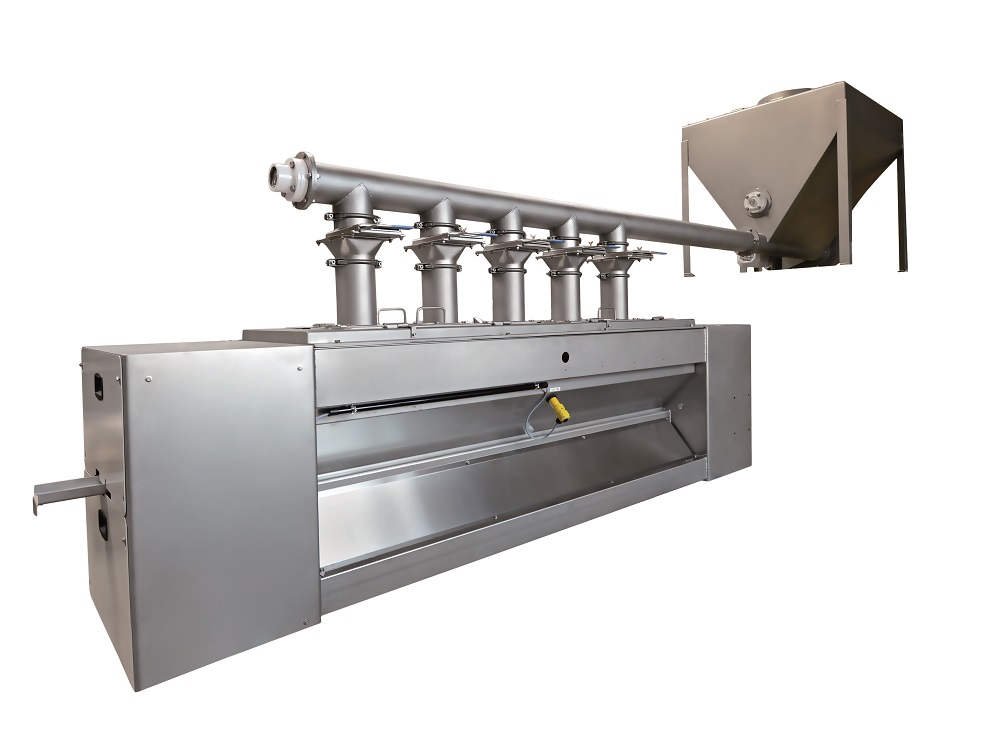

The Caviscat series enables scattered coating of technical textiles with a working width up to 7,000 mm. © Santex AGTechnical properties

The grit is fed via a funnel shaped trough on the scatter roll underneath. An oscillating brush scatters the material through an oscillating sieve onto the moving web material. The quantity can reach up to 4,000 g per minute and meter material width.

In the next step an infrared heater melts the scattered grit, which is therewith connected to the base material web. An additional layer can be laminated onto the base layer if needed.

Applications

The scatterer is suited for all kind of grit from fine powder to pellets of 2,000 µm size. Depending on the material and the scatter quantity different types of scatter rolls are used. Simultaneous scattering of two different materials at the same time is also possible.

The Caviscat scatterer, which is available with working widths from 500 mm to 7,000 mm, is said to guarantee exact and even coating of the web material. The scatterer is ideally suited for applications in the field of technical textiles, according to the company.

Tailored solutions can be realised, when the Caviscat is combined with other machines of the Cavitec brand.

Santex AG

Swiss company Santex AG, established 1982, is the leading manufacturer of textile machines for knit fabrics finishing.

Under the Cavitec brand the company also develops and manufactures machines for coating and laminating of technical textiles.

R&D of machines, including electronics and software, is located in Switzerland. The subsidiaries in China and India serve the most important markets in the world with Swiss engineered quality products.

www.santex-group.com
