Hohenstein develops textile finish with sensory cooling effect

At the end of the project, the scientists showed that applying a finish containing sensory cooling substances would be feasible for SMEs.

23rd August 2016

Innovation in Textiles
 |  Boennigheim

Sports/​Outdoor, Clothing/​Footwear

Scientists at the Hohenstein Institute have been developing and analysing a textile finish that could provide a sensory cooling effect as part of an IGF research project.

Sensory cooling is the term used to describe a chemically induced sensation of coolness on the skin, due to the triggering of cold receptors in the nerve ends close to the surface of the skin. This is different from the cooling effect normally achieved by physical processes, where the skin is cooled mainly by the evaporation of water, the Institute explains.

Targeted cooling of the surface of the skin is required, for example, when treating sports injuries, or after insect bites or for other therapeutic purposes. Cold water, ice cubes, sprays and cooling, water-retaining medicaments can be used for this purpose. Cooling textiles made from high-tech fibres are also based partly on the principle of cooling by evaporation.

Cooling systems

According to the Hohenstein Institute, with commonly used cooling systems such as cool packs or ice sprays, the skin is often cooled down too much. In the worst cases, this can lead to symptoms of frost-bite and the formation of blisters which increase the damage to the skin. Unlike these conventional cooling methods, cold-inducing substances that result in "sensory cooling" have a mild cooling effect, even when spread over a large area, without over-cooling the skin, according to the Institute.

One example of this would be the peppermint substance "menthol". This has a cooling effect and soothes itching. Now a whole range of other chemical substances have been discovered which, like menthol, bind themselves to the cold receptors. These substances trigger a stronger cooling sensation, are odour-neutral and have a longer-lasting effect. This means they can be used for therapeutic purposes.

Textile finish

In their research project, the scientists at Hohenstein have developed a finish for textiles that creates a sensory cooling effect. This textile finish is based on p-menthane derivatives (agonists) such as WS-3 (N-ethyl-p-menthane-3-carboxamide) or L-menthyl lactate and icilin.

These substances have the advantage that, when spread in very low concentrations on small areas of the body, they have a lasting mild cooling effect throughout their period of activity. This kind of sensory cooling textile finish was tested on different textile substrates made from natural or synthetic fibres and blends, and in concentrations of the active ingredient ranging from 0.1‰ – 1%.

Testing

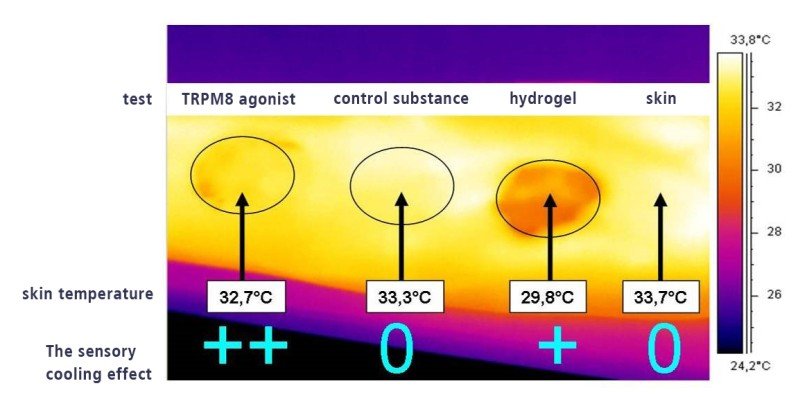

In tests with volunteers, the attempts at functionalising textiles using substances which have a sensory cooling effect produced very different sensory perceptions of the degree of coolness. The sensory perception of cold depended not only on the area of skin being treated but also on a range of other parameters, such as the moisture level in the skin and the topography of the skin surface.

The way the perceived cooling effect on the skin is processed and assessed depends on numerous external and internal factors and is therefore subjective. During the project, the researchers were able to make new findings about the substance sensitivity of specific areas of the skin. The project also showed that sensory cooling textiles are effective in textiles worn close to the skin, but are unsuitable for loosely cut clothing that is not in direct contact with the body.

At the end of the research project, the scientists at the Hohenstein Institute were able to show that applying a finish containing sensory cooling substances (WS-3 or menthyl lactate) would be feasible for SMEs.

www.hohenstein.de
