Longer parking times for better efficiency

Wings HD gets modification to make everyday production even simpler for customers.

16th February 2023

Innovation in Textiles
 |  Remscheid, Germany


Since 2018, Oerlikon Barmag has been offering the market’s only currently available concept for high-end home textile applications using the POY and DTY process. The spinning concept with the Wings HD winding unit in conjunction with an automatic eAFK Big V Multispindle texturing machine manufactures excellent-quality high-count yarns with maximum machine efficiency.

“We have correspondingly modified Wings HD in order to once again better align the increased requirements of these special yarns to the spinning process and make everyday production even simpler for our customers,” comments Stephan Faulstich, POY Process Technology Manager.

“The parking times are extremely short when winding high counts. We have increased the parking times by up to three times in the case of the new Wings HD models. To this end, the parking time for a 300d/384f yarn, for example, has been increased from a standard 6.5 minutes to 15.7 minutes – and, in the case of a 400d/192f yarn, from 4.3 minutes to 10.3 minutes. This makes the doffing process more even, hence increasing doffing reliability.”

“At the same time, the draw unit now has a more flexible design, meaning that two-godet operation is also possible in the case of products with low overall counts. This has a positive impact on the winding unit’s energy consumption.”

Superb efficiency and functionality

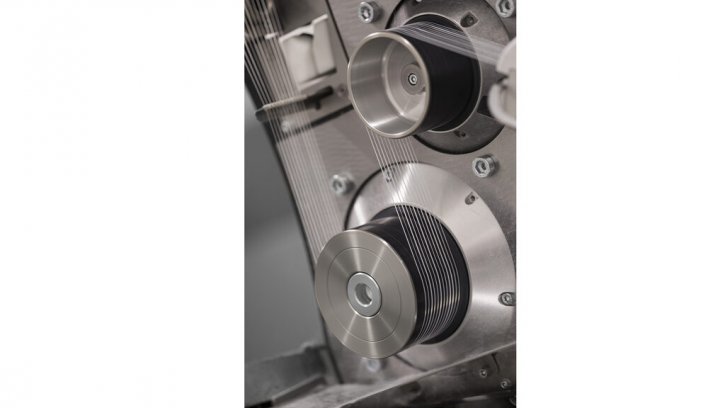

12 POY packages of up to 600d/576f (final) are produced in the spinning process using Wings HD 1800. This is made possible as a result of an additional godet, which ensures that the high yarn tensions developing in the process are reduced to the yarn tensions common in the case of the winding process to date. At the same time, the newly developed suction unit with the accompanying yarn cutting device (yarn collecting system) ensures, both during string-up, and in the event of a yarn break, reliable handling of the yarn with an overall count of 7200 denier (final).

Decisive benefit

Whereas DTY yarns up to 1200 den and with up to 784 filaments have in the past, as standard, been plied from four POY 300d/192f bobbins using DTY machines, high counts can also be manufactured directly using the Wings HD take-up machine. And combining the Wings HD and the eAFK Big V is ideal, as this allows all available winding positions to be utilised during texturing.
